Description

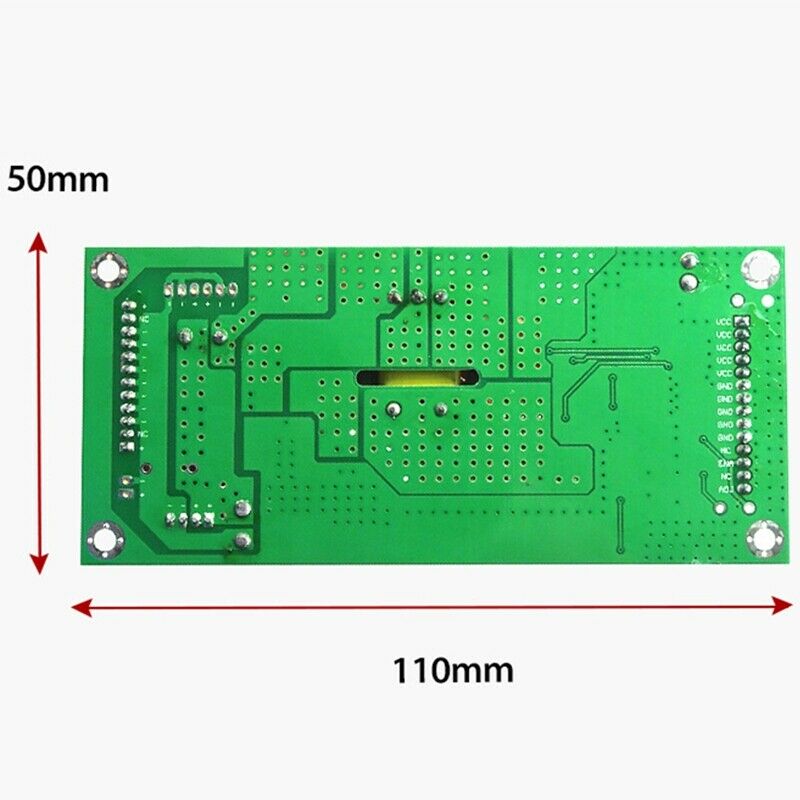

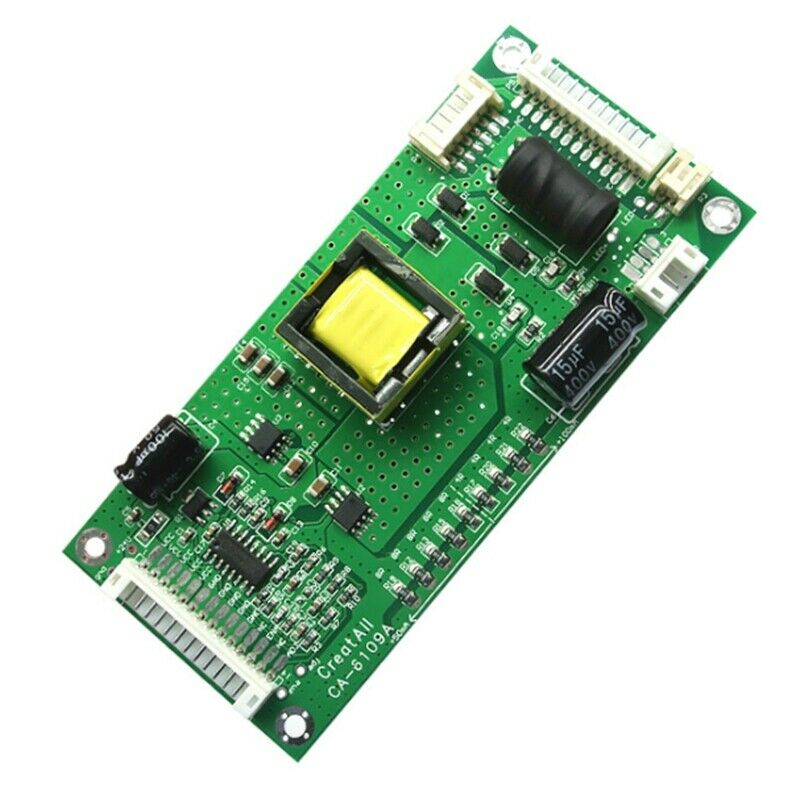

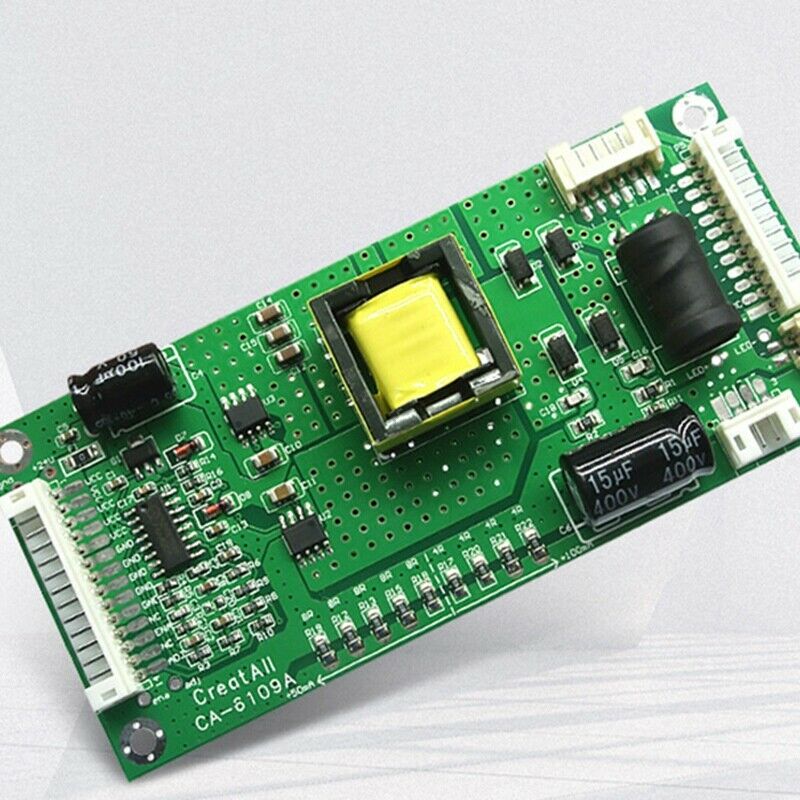

ITEM NAME:10-65 Inch LED LCD Backlight TV Universal Boost Constant Current Driver Board G3 10-65 Inch LED LCD Backlight TV Universal Boost Constant Current Driver Board G3 100% brand new and high quality Power input voltage 12V-28V; Boost ratio 1: 7.5, 12V can be increased to 80V, increased from 24V to 160V. The LED lamp current defaults to 248mA, which can be set to 600mA via short on the board. Total output power is limited to 40W or less. Optimized operating efficiency of transformer efficiency 85 ° C, temperature of 40 ° C increases 30 ° C. In reverse dimming mode, ADJ is the dimming port, ground is brightest, and high voltage is dimmed to extinction. ADJ is allowed to hang, if connected, it will connect directly to the ground. According to the flag on the board, connect vcc, gnd, in (activation), adj dimming, a total of four input ports, the output selects the positive and negative output ports of the LED. Specification: Model: CA-6019 Input voltage: 10-28V Output voltage: 5-165V colour: green Material: plastic size: 110x50mm Package Contents: 1 x Constant Current Driver Board ice: 1. The boot has a soft start and other protection, so the shutdown door must be connected to the floor when in use. Disconnection is recommended. 2. the opaque gate setting is 0 3 v, 0 v is the brightest, 2 2.5 v is already very dark and basically shielded near 3 v. At this point, Output 0 v).Find many great new & used options and get the best deals for 10-65 Inch LED LCD Backlight TV Universal Boost Constant Current Driver Board G3 at the best online prices at Order2india Shopping! Free shipping for many products!
