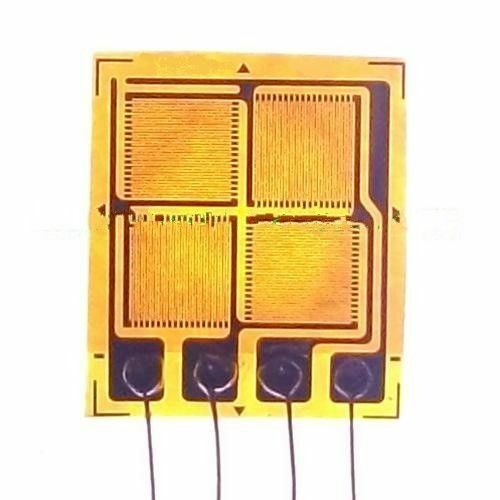

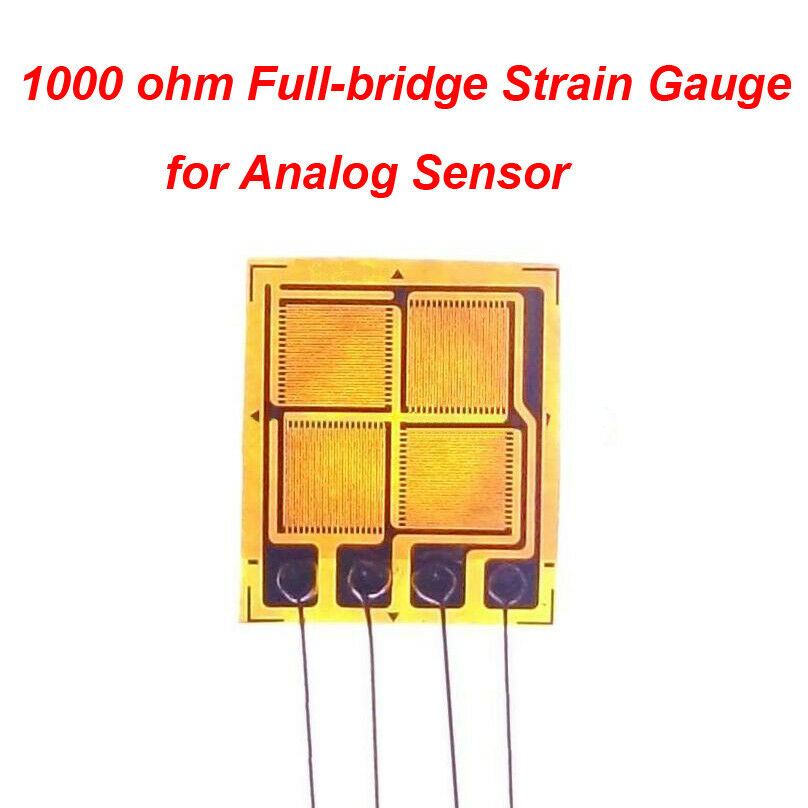

1000 ohm Full-bridge Strain Gauge 1000ohm EB Foil Strain Gauge for Analog Sensor

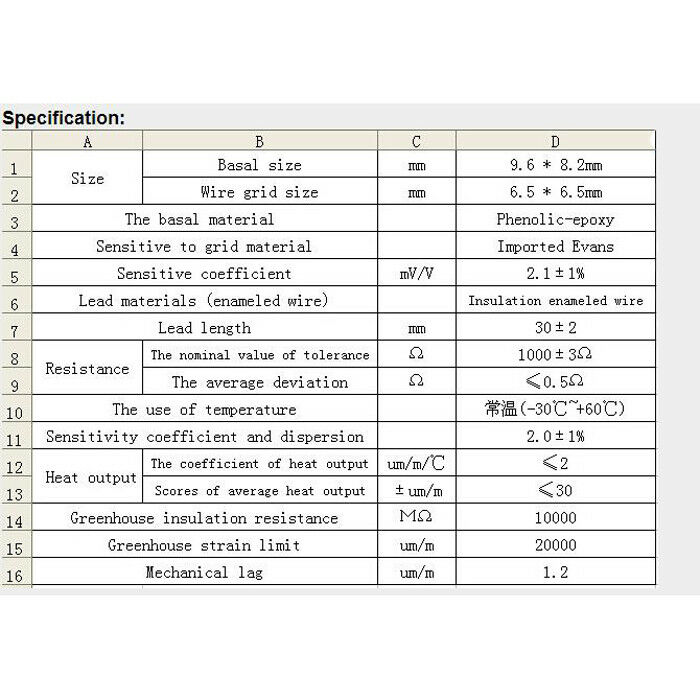

ITEM NAME:1000 ohm Full-bridge Strain Gauge 1000ohm EB Foil Strain Gauge for Analog Sensor Item Detail: New:100% New and High quality Type: 1000 ohm Full-bridge Strain Gauge The basal material: Phenolic epoxy Basa Size: 9.6mm*8.2mm Strain gauge paste process: 1, The strain gauge choice selection elastic adhesive considerate sided polished surface cleaning Patch crossed positioning installed the patch clamp curing Quality Inspection lead connection parameter compensation correction protective treatment performance testing 2, The sensor patch is recommended to use a high-performance 610 glue shop, when a patch of clean room requirements, relative humidity less than 60%. 3, With a particle size range of 200-400 sandpaper number of members of the elastomer or elastomers polished hair treatment. 4, Surface cleaning available in a single direction acetone, ethanol and other clean and dry in time. 5, SMD parts are available 3H drawing pencil or ballpoint pen to draw a faint trace of oil-free as a positioning mark. 6, Remove the strain gauge placed on a clean PTFE film with a cotton swab moistened with absolute alcohol to clean both sides of the strain gauge, paste side up dry spare. 7, 610 with a brush dipped in glue applied to the specimen placement position. 8, Tweezers take the strain gauge alignment marks paste and covered with Teflon film, and use your fingers to gently squeeze excess glue and bubbles discharged. 9, Placing temperature silicone rubber, clamps, and then curing paste process and stabilization process. 10, With a 20W soldering iron welding wire, welding time is less than one second, and washed with ethanol joints. 11, Chip quality inspection items: the change in resistance, insulation resistance, chip position and strain gauge whether there is a bubble under. 12, requires the use of special protective strain gauge silicone rubber. (Silastic shop can provide, liquid, room temperature curing, easy to use). Strain gauges attached flow: Strain gauge selectio.Find many great new & used options and get the best deals for 1000 ohm Full-bridge Strain Gauge 1000ohm EB Foil Strain Gauge for Analog Sensor at the best online prices at Order2india Shopping! Free shipping for many products!
