Description

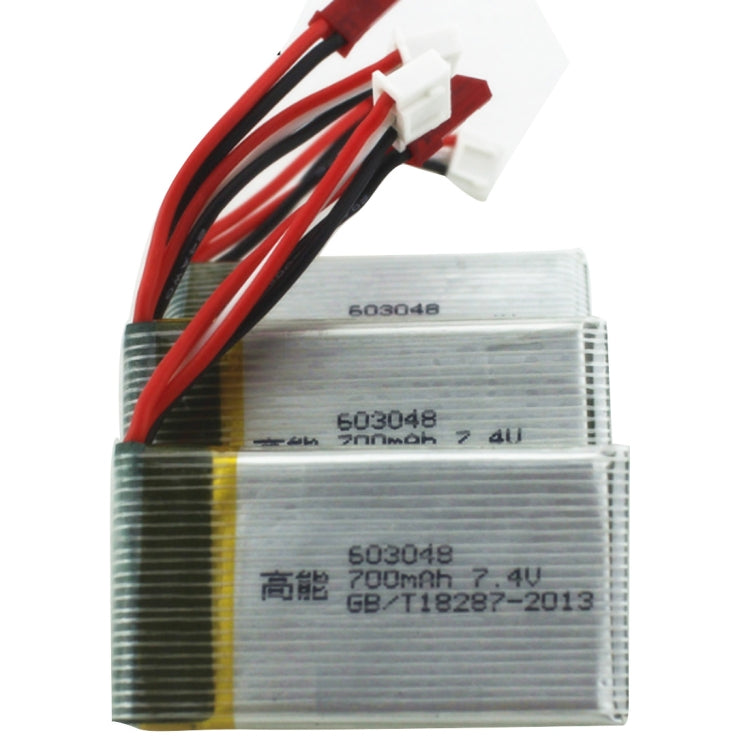

1. Capacity: 700mAh
2. Voltage: 7.4V
3. Weight: 40g
4. Single section charging maximum voltage: 4.2V
5. Standard charging current: 700mA
6. Single section discharge minimum voltage: 2.75V
7. Standard discharge current: 8.5A
8. Maximum charging current: 1400mA
9. Maximum discharge current: 14A
10. Working temperature: -20 Celsius to 65 Celsius
11. Charging temperature: 0 Celsius to 45 Celsius
13. Cycle life: 300 times greater than 80%
14. Can be certified: UN38.3 ROHS MSDS CE
15. Discharge terminal: JST-SYP
16. Charging terminal: XHR-3P reverse
17. Discharge wire: 3239 20AWG
18. Charging wire: UL3239 24AWG
19. Size: 16 x 31 x 54mm
20. Safety protection: no overcharge, over discharge, short circuit protection, customer charging using balanced charging and charging, discharge must increase over-discharge alarm, and the battery must be disconnected from the aircraft model when not in use, to avoid over-expansion caused by inflation
21. Applicable products: Mejiaxin X600 F46 X601H aircraft model aircraft lithium
