Description

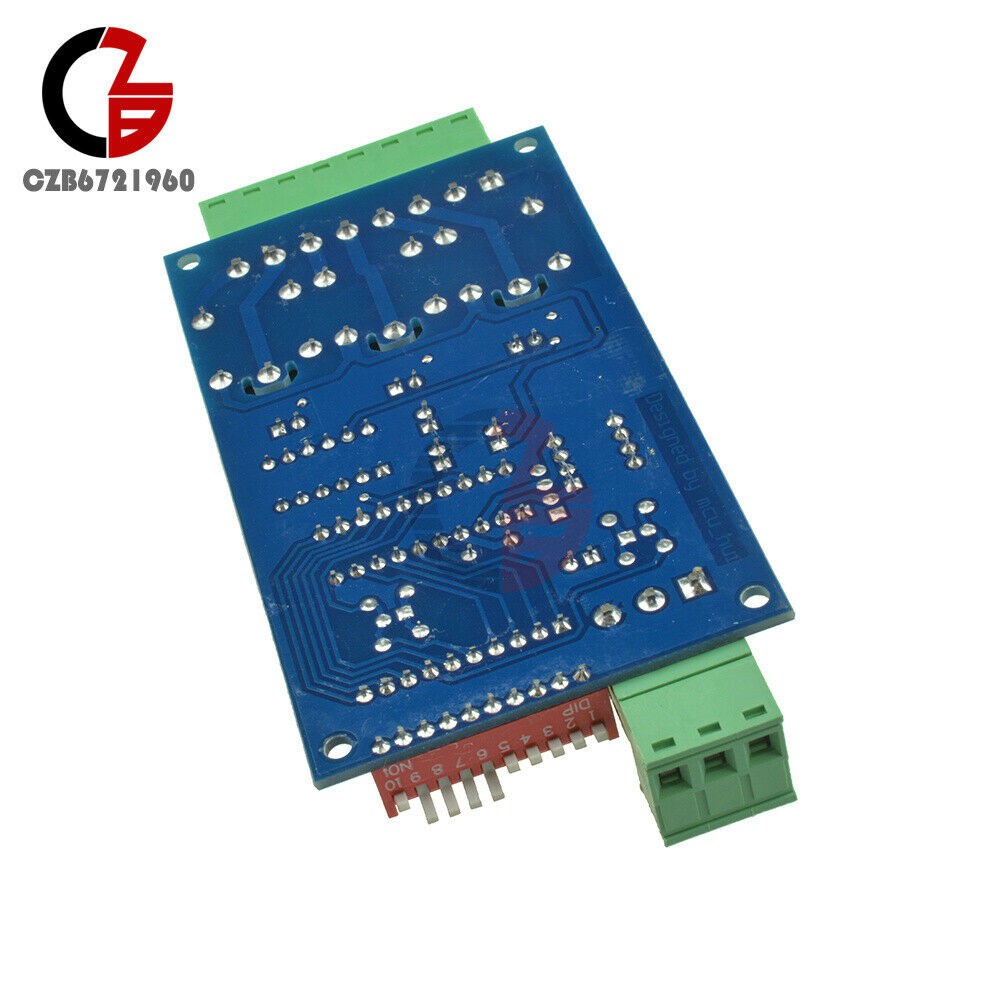

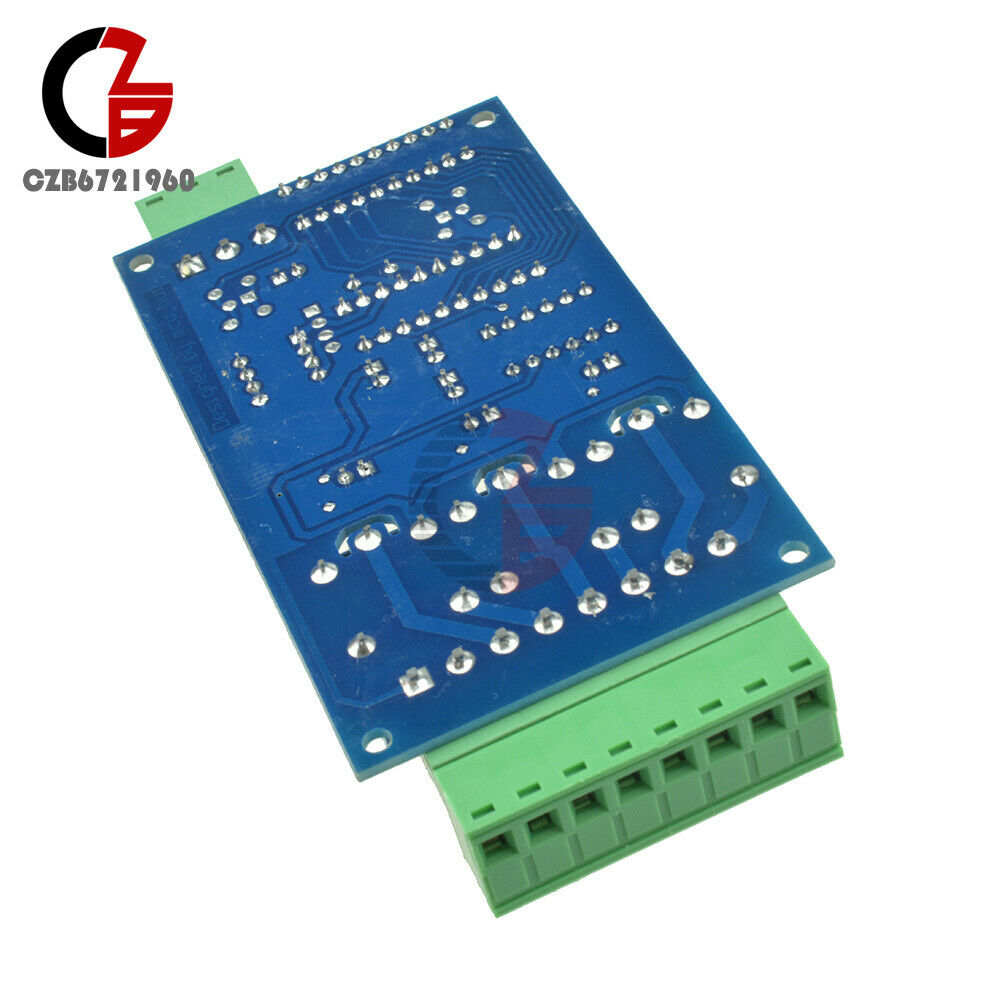

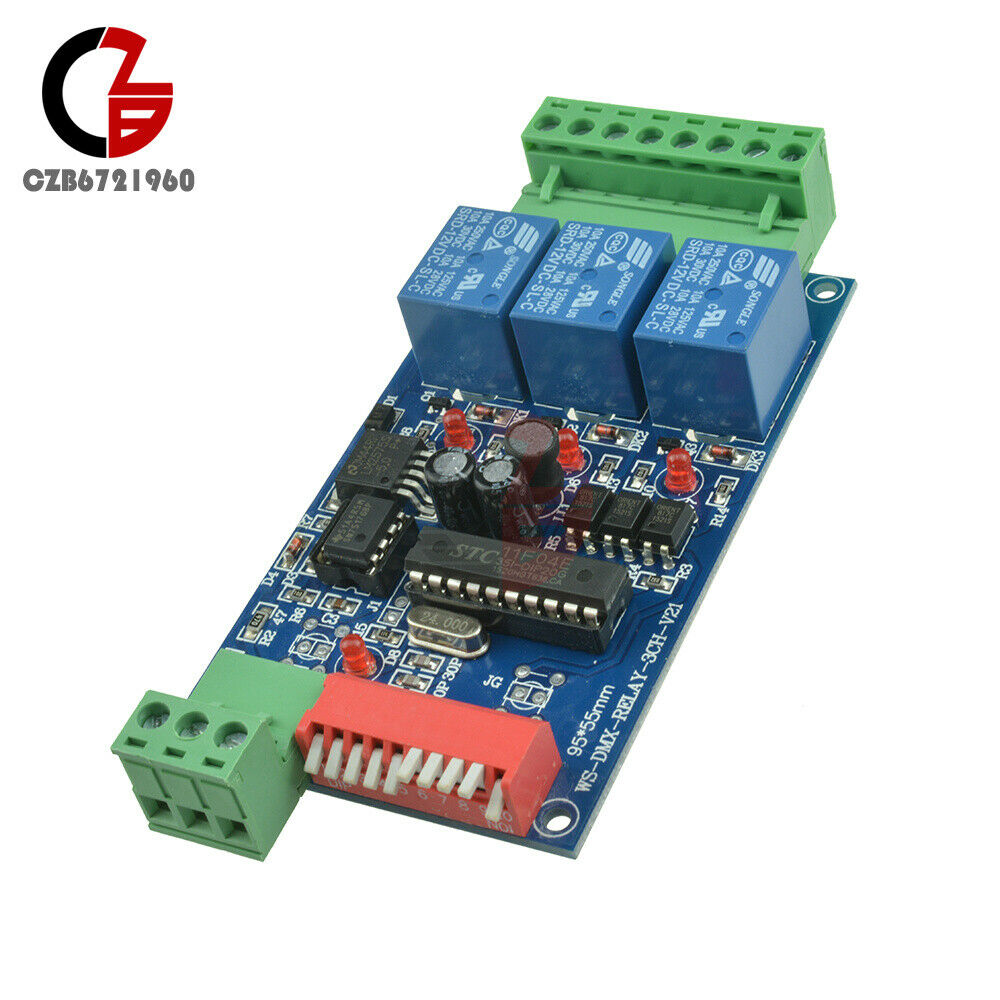

ITEM NAME:DMX512 Relay Decoder RGB LED Dimmer 3 Channel 12V 5A Relay Switch Controller Home Electronic Component Chips Sensor Arduino Module Raspberry Pi DMX512 Relay Decoder RGB LED Dimmer 3 Channel 12V 5A Relay Switch Controller Popular Popular Product Introduction Overview: Comply with DMX512 international standard protocol Built in change mode, you can adjust by dialing code DMX512 address code can be set via DIP 3 relay outputs Working voltage: DC12V-24V We Accetpt OEM services Basic parameters: Dimensions: 120MM * 55MM * 25MM (L * W * H) Working temperature: -20 °C ~ 60 °C Supply voltage: DC12V-24V Relay load: 5A per channel Weight: 100g Features: DIP10 function key (FUN). DIP10 (FUN) is OFF, as DMX512 mode, receive standard DMX512 signal. Occupies three address code, (R, G, B for each channel), DIP1-DIP9 address code setting. When less than 127 DMX512 data relay off DMX512 data is greater than 127 when the relay is closed DIP10 (FUN) is ON, the built-in change mode and does not receive standard DMX512 signal. DIP1-DIP9 to invoke the built-in effects settings. Package included: 1 x DMX512 Relay Decoder.Find many great new & used options and get the best deals for DMX512 Relay Decoder RGB LED Dimmer 3 Channel 12V 5A Relay Switch Controller at the best online prices at Order2india Shopping! Free shipping for many products!
