Description

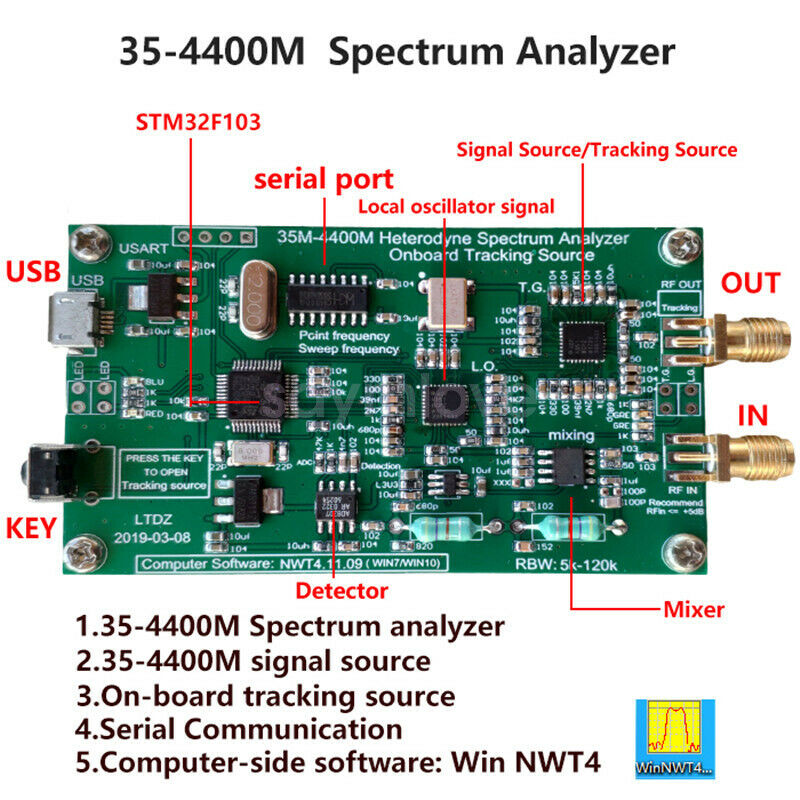

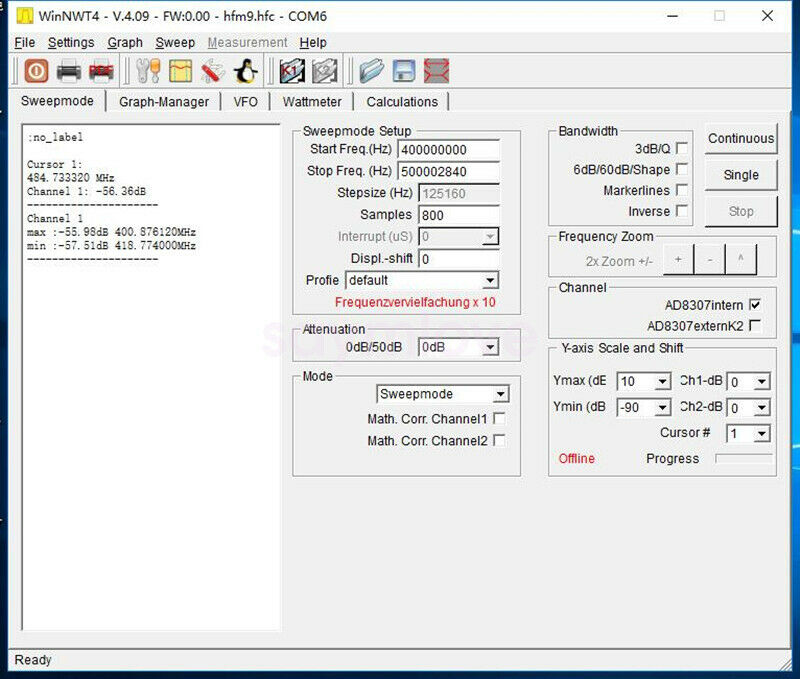

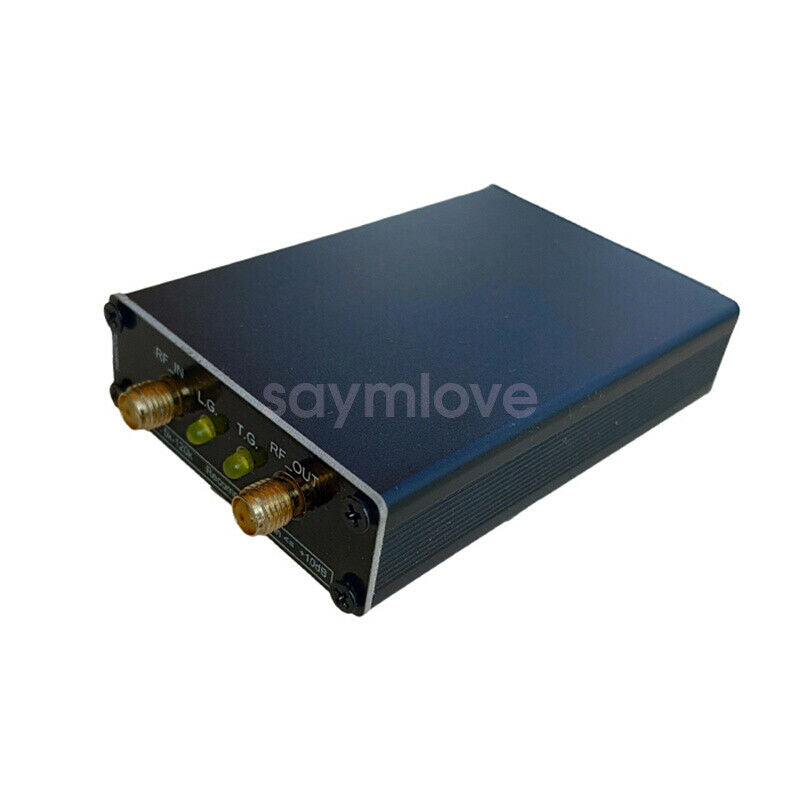

ITEM NAME:New USB Spectrum Analyzer 35-4400MHz Spectrum Signal Generator Tracking Source Product Overview New USB Spectrum Analyzer 35-4400MHz Spectrum Signal Generator Tracking Source Detail Features: Aluminum case Small and portable, high accuracy. It is an RF frequency domain analysis tool. Turn on the tracking source output bandwidth 33mHz-3000mHz. Sweep step: ≥ 33~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275~550mHz/1kHz, 550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz. Specifications: Attribute: RF frequency domain analysis tool Interface: USB Power supply: USB Standby current: ≤100mA Sweep current: ≤350mA Sweep bandwidth: 33mHz-4400mHz Turn on the tracking source output bandwidth 33mHz-3000mHz Sweep step: ≥ 33~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275~550mHz/1kHz, 550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz Sweep speed: ≥800 points/sec Sweep dynamic log ratio: > 50dB Point frequency or sweep output power: ≈0 dBm Input detection: ≤10dbm Background: ≈ -60dBm Software used on the computer side: NWT4.11.09 version Computer operating system: winxp, win7, win10 Item size: 92 * 48mm / 3.6 * 1.9in Item weight: 23g / 0.8ounce Package size: 140 * 70 * 15mm / 5.5 * 2.8 * 0.6in Package weight: 24g / 0.8ounce Package include: 1 x Spectrum Analyzer.Find many great new & used options and get the best deals for New USB Spectrum Analyzer 35-4400MHz Spectrum Signal Generator Tracking Source at the best online prices at Order2india Shopping! Free shipping for many products!
