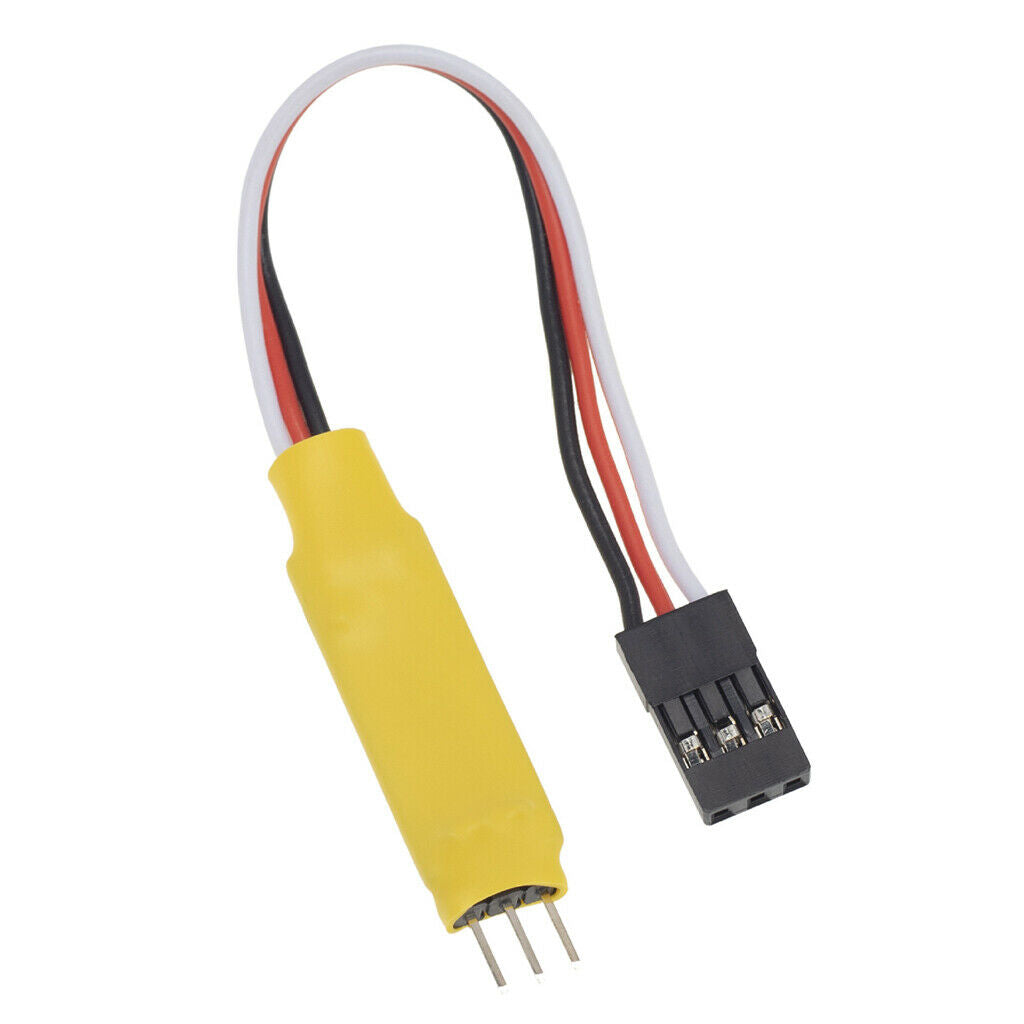

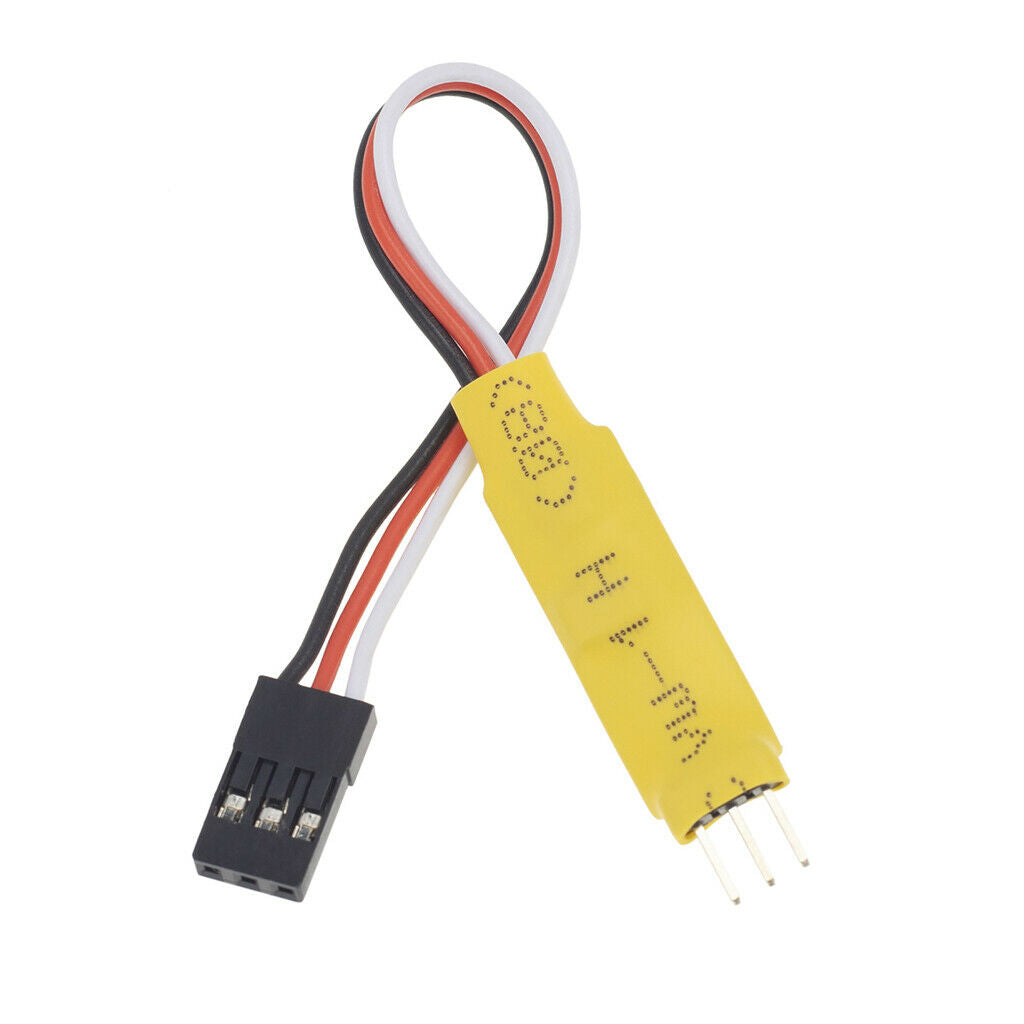

ITEM NAME:Remote Controller Servo Angle Expander 90 to 180 Degree RC Drone Models Accs Description: Mini and lightweight, compact to use. Support 500-2500us 180-degree servo. 3P cable and plug design, simple to connect. The steering gear is usually 180 degrees, but the remote control can only turn it 90 degrees. Application: Where you want to extend the angle with a remote control, such as (robot arm, homemade sailboat). Specification: Adapted voltage: 3.6-16V Board size: Approx. 25x9mm Length: 134mm / 5.27inch The remote control pwm output is: 1000-2000us (At this time, the steering gear can rotate 90 degrees) This device expands it to 500-2500us to achieve the purpose of rotating 180 degrees Premise: The steering gear can rotate 180 degrees within the range of 500-2500us. Package Includes: 1 Piece Servo Angle Expander Note: Please note that some servos meet the limit plate before it reaches 180 degrees. Do not perform hard operation and cause the motor to stall. The steering gear reversal is to give the complementary signal of the steering gear, for example, it is currently 1500, and the motor sets the middle position. At this time, if the steering gear is rotated 9 degrees counterclockwise, the signal of 1600 should be given, but the reverser changes it. It is 1400 so that the steering gear rotates 9 degrees clockwise. SKU: MNF0033274761040624.Find many great new & used options and get the best deals for Remote Controller Servo Angle Expander 90 to 180 Degree RC Drone Models Accs at the best online prices at Order2india Shopping! Free shipping for many products!
