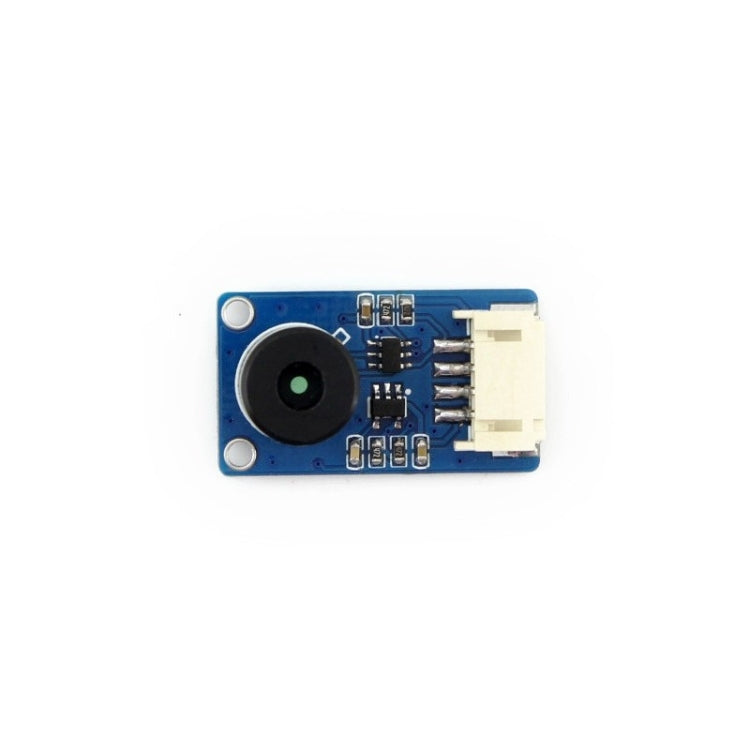

Waveshare Contact-less Infrared Temperature Sensor

Overview
1. Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target
- Also measures the average temperature over an area
2. Contact-less, high precision, high resolution, fast response
3. Calibrated before delivery, with gradient temperature compensation
4. Works with 3.3V/5V MCU system directly, thanks to the built-in level translation

1. Power: 3.3V ~ 5V
2. Measuring range (area): 40 degree C ~ 85 degree C
3. Measuring range (object): -70 degree C ~ 380 degree C
4. Resolution: 0.02 degree C
5. Precision: +/-0.5 degreeC ( 0~50 degreeC)
6. Field of view (FOV): 35 degree
7. Dimension: 28mm x 16 mm
8. Mounting holes size: 2.0mm

Applications
1. High-precision contact-less temperature measurement
2. Industrial temperature control
3. Household appliances temperature control

How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5V
2. GND: GND
3. SDA: MCU.I2C data line
4. SCL: MCU.I2C clock line

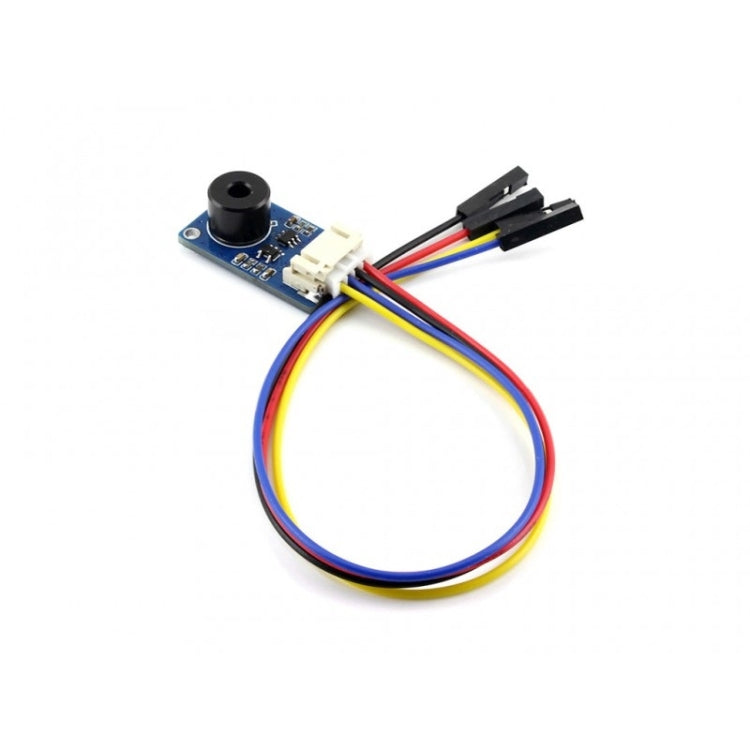

Package Contents
1. Infrared Temperature Sensor x 1
2. PH2.0 4PIN wire x 1
